CS 106 +1 Professional Audio Mixer Panel Descriptions





SIDE PANEL

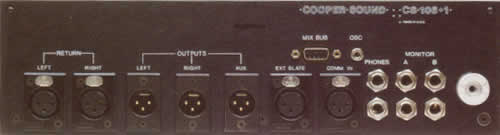

CS 106 Side Panel



Balanced Tape Returns
+ 4 dBU Transformer Balanced Outputs
External Slate Microphone Input
Communications In:
To phones only
Monitor Outputs: Phones (stereo), Monitor A & B (mono outputs)
Mix Bus: Onput to left, right, auxiliary & PFL busses



REAR PANEL

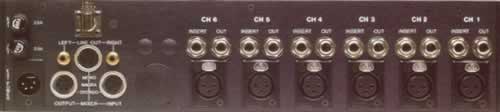

CS 106 Rear Panel



External Power & Battery charge
Internal & External Fuses
Low Line Outs
: For DAT and cassette recorders
Tuchels: Direct connections to Nagra 4.2 including remote roll and tape returns;
and Nagra IVS including remote roll and tape returns
Light: + 12v DC output
Input XLR's: Transformer balanced microphone inputs
Line Out: Individual channel line outs
Nominal level = 0.5 v RMS
Insert: Send and return. Nominal level = 0.5 v RMS
