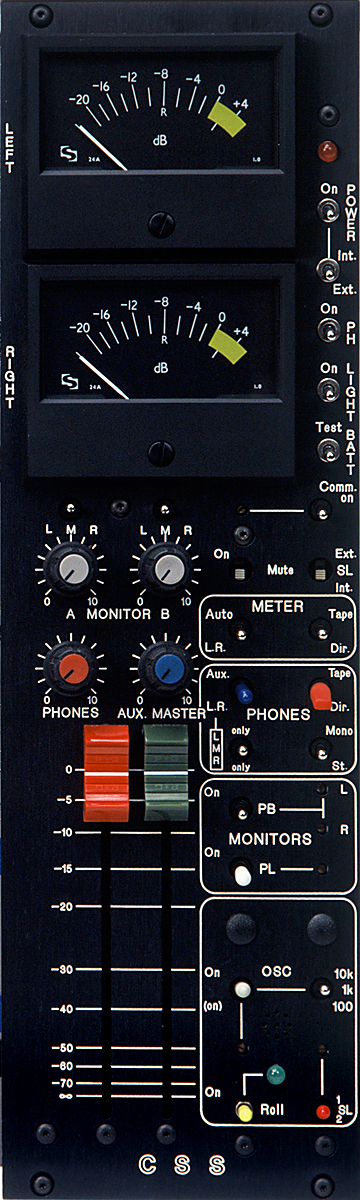

CS 106 +1 Professional Audio Mixer
|
|||
|
|
Meters: |
Either VU or PPM Selco analog meters | |
| Power: |
On/Off with LED, internal/external select | ||
|
Master Phantom (PH) On |
|||
|
Light On: |
Switches "Littlite" connected to BNC | ||
| Battery
Test |
|||
| Communications: |
On/Off and level trim pot-talkback to phones output | ||
| Mute: |
For muting oscillator and slate to Monitor A & B ouputs | ||
| Meter
Section: |
Auto, left-right, tape/direct. In the Auto mode, the meters are controlled by the phones section. | ||
| Phones Section: | Includes auxiliary, left, right, left only, right only, mono/stereo and tape/direct. With level control. | ||
| Monitors: | A & B level pots and mix bus select switches left/right, both. eg: Monitor A can be assigned to boom operators and Monitor B to director/script. | ||
| PB: |
playback (Tape return) to Monitor A & B only. | ||
| Private
Line: |
Slate microphone output is fed to Monitors A & B only with level adjustment. 'B' private line can ve defeated via a dip switch. | ||
| Oscillator
frequency select: |
100 - 1K - 10KHz. | ||
| Slate
On: |
Down=Slate+low frequency tone (27 HZ). Up=Slate only. Slate switch can also remote roll Nagras. | ||
| Remote
Roll: |
To control either Nagra 4.2 or IVS or both. Also activates two end tones when switched to off. | ||
|
