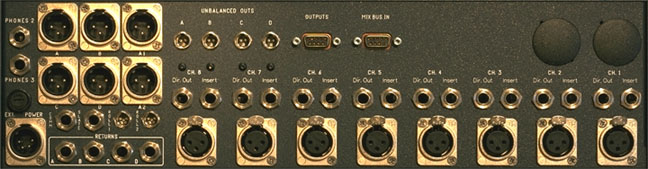

CS 208 REAR PANEL |
|
|
|
|
| 1.
Phones 2 : |
Stereo 1/4" jack. |
| 2.
Phones 3 : |
Stereo 1/4" jack. |
| 3.
Fuse : |
2.5A (5 x 20mm). |
| 4.
Ext. Power In : |
Pin
1 = negative DC, Pin 3 = Battery charge (positive), Pin 4 = Positive DC (see specifications). |
| 5.
A, B, C, D, A1, A2 : |
Balanced XLR outputs (Pin 2 high) |
| 6.
Unbalanced Outs (TQG) : |
ABCD Pin 1 = ground, Pin 2 = signal. |
| 7.
Unbalanced Outs (DB9) : |
ABCD. |
| 8.
Mix Bus In : |
ABCD (current input). |
| 9.
Comm. In : |
Talkback to phones 1. Balanced input. Stereo 1/4" jack. |
| 10.
Slate : |
External slate mic input. Mono 1/4" jack. |
| 11.
Roll 1, 2 : |
See pin outs. |
| 12.
Returns : |
ABCD Balanced in. Stereo 1/4" jack. |
| 13.
Ch. Dir. Out : |
Channel direct out, post fader. Mono 1/4" jack. |
| 14.
Ch. Insert : |
Can be direct out, pre-fader (see board A layout). Unbalanced stereo 1/4" jack. |
| 15.
2 spare holes : |
Option for stereo input channels. |
|
