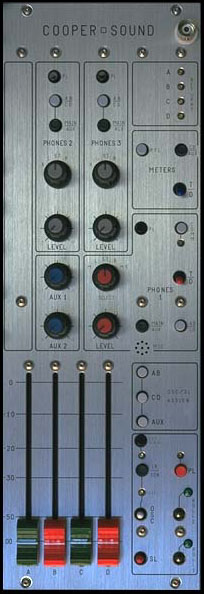

CS 208 OUTPUT MODULE

Phones 2 & 3
1.  PL :

Private line assign to phones 2 or 3
(down = on). See master PL switch (27).
2.   Main/Aux :  Selects main (ABCD) or Aux 1 & 2 to phones 2 or 3.
(Aux 1 = L out, Aux 2 = R out.)
3. AB / CD : When main is selected, this switch selects either AB or CD to L, R of the phone outs.


4. Rotary Select Switch :
X   =  phones 2 or 3 follows the phones 1 selection.
          Example: Playback to phones 2 & 3 for
          director/script critique.  Switch phones 1 to
           tape).
L    =  A, C or A1 to both outputs. (ie: Mono to L & R
         headphone capsules). See (2 & 3).
ST  =  A, C, A1 to left capsule B, D, A2 to right
          capsule. See (2 & 3).
R    =  B, D, A2 to both outputs. See (2 & 3).
5. Phones 2/3 level : Gain adjustment.
Aux 1, Aux 2
6. Aux 1, 2 master level controls.
Returns
7. Trim pots (multi-turn) to adjust return (tape) level to phones 1 & meters.
Meter Section
8. CD/Aux :  Meters 3, 4 = CD or Aux outputs
(3 = C or A1, 4 = D or A2).
9. PFL : Meters 1, 2 can indicate PFL selected on the input
channels. (Momentary switch).
10. T/D :

 1ape/Direct. Meters indicate the return signals.
(1 = A, 2 = B, 3 = C, 4 = D). CD/Aux switch (8)
overides the tape return
Phones 1
11. PL :
Private line assign to phones 1 (down = on) see master
PL switch (27).
12. Comm : Communications return to phones 1 only. (down = on).
(Talkback to phones 1) (see app. notes for 2 returns).
13. Comm. Trimmer :  Adjusts return level.
14. T / D :  Tape or direct to phones 1.
See AB / CD below (16).
 15. Main / Aux :  Selects either main, ABCD or Aux (A1, A2)
to phones 1.
 16. AB / CD : When main is selected, group AB or CD
is sub-selected to phones 1. This also controls
the tape return (A = L, B = R, C = L, D = R).
 17. Phones 1 selector :

M      =  Mono to both outputs.
L       =  A, C or A1 mono to both outputs.
ST     =  A, C, A1 = L. B, D, A2 = R.
R       =  B, D, A2 mono to both outputs.
M.S.  = M/S decode to phones 1.

18. Level :

 Phones 1 gain control.
Mic
19. Internal slate microphone (See Ext. Slate) (21).
OSC/SL Assign
20. Assigns oscillator & slate to AB, CD or Aux outputs.
OSC, SL, PL, Roll
21.Ext. Slate :
Selects internal or external slate mic.
Down = external slate input on rear panel.
(Bypasses internal slate mic).
22. Slate Trimmer : Controls level of both Int. & Ext. slate
(multi-turn pot).
23. 1k / 10k : Frequency select for internal oscillator.
Up = 1kHz, down = 10k.
24. Trimmer : Oscillator level (multi-turn pot).
25. Osc : Internal oscillator.
(up = on, down = momentary on).
26. SL : Slate mic.
down = with LF tone, up = no LF tone.
27. PL : Master private line & level control.
Directs slate mic to phones 1, 2, 3 only.
Assigned by (1 & 11).
28. Roll 1 & 2 : Up = on, down = pause or stop.
See �pin outs� for further details.
